Measurement data and station information:     recording         administrating             analysing

HISTM the environmental data management system the Hydrographical Information System the database system for administrating and evaluating environmental data

Please click the pictures to enlarge them.

Data Sources

• from highly frequent data series of one parameter (quantity) up to singular environment reports of some hundred parameters (quality)
• online measurement, data collectors, digitised data values, files in different formats
• e.g. water stage and flow, chemical, biological values, meteorology, profiles (geodesy), etc.

Measurement Station Information

• stored in the database with timing information
• e.g. station name, coordinates, contact person, as well as public orders, maps, plans

User Access Rights

• in several privilege steps
• saves data before unwanted access
• protects from unintentional data changes

Data Access

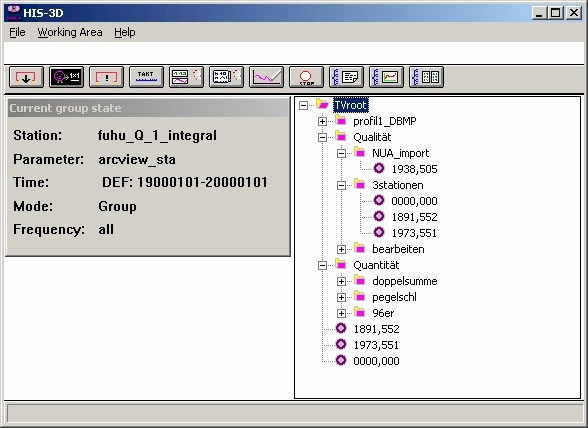

• using the group system SPT: station, parameter, time
• cycle time: presentation and evaluation
• are independent from the data sampling interval
• easy access to data values
• presentation in dialogue boxes
• exportable to formatted lists

Editing

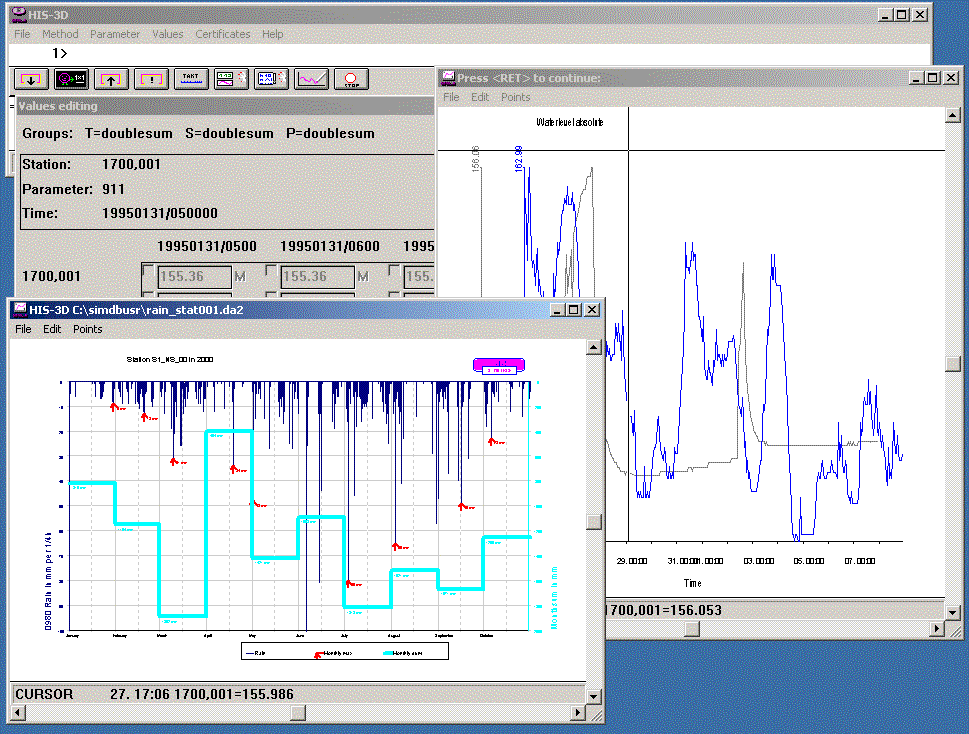

• numerical and graphical
• data series: move, turning around a point, copying, adding of values by interpolation and regression with stations in the neighbourhood
• protocol of changes (who/when/why)

Import/Export Of Data Values

• freely formatable; manual and automatic import
• is fault tolerant and learnable against wrong spelled words

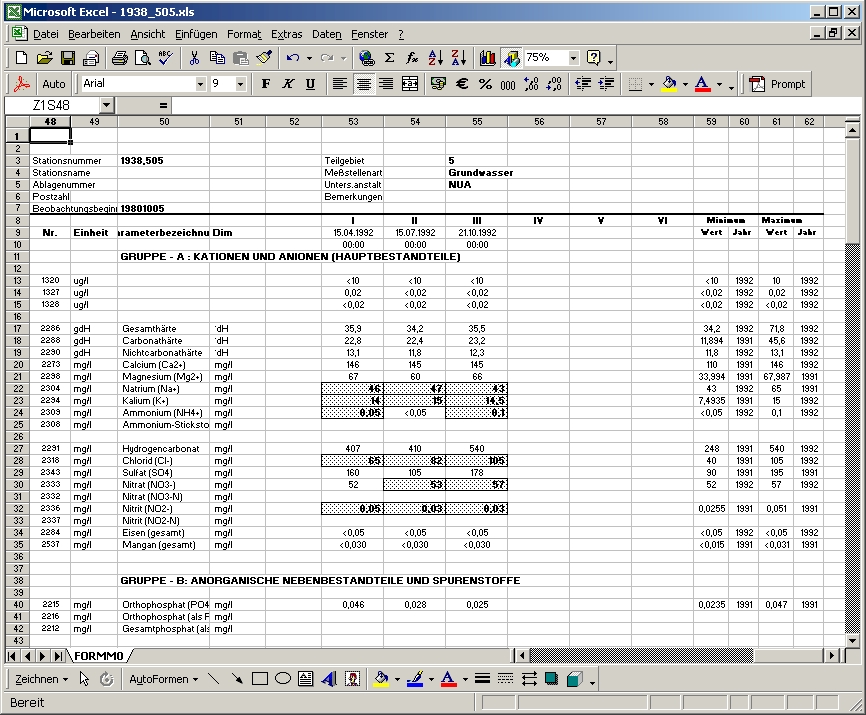

• MS-Excel and ASCII tables with data values are simply dragged into the application
• automatic testing during import (e.g. plausibility) and export (e.g. cell formatting at values with boundary value violations, drinking water codex)
• XML for logically formatted exports

Graphics

• widely formatable, storable layout
• 2D-pictures (curve), 3D-surface
• colour intensity plots, isolines

Analysing Methods

• independent from samping interval (e.g. only 7⁰⁰ values)
• all results are output to a file, a graphic, or the database
• Script language (C) for criteria and analysis

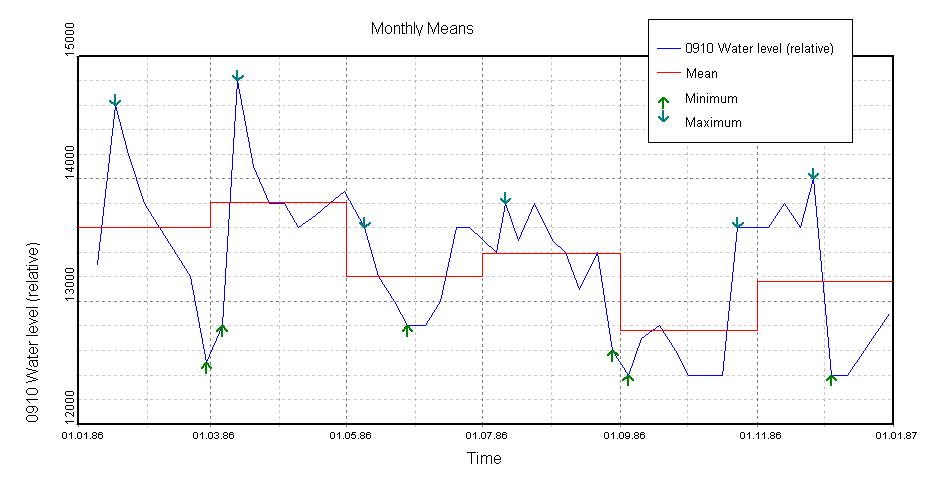

• statistics (mean, sliding mean, minimum/maximum, variance, median)
• regression (over time and data series), trend, histogram
• arbitrary algebraic combining of data series (movable over time)
• double sum, flow-duration curve
• polygonalisation (data reduction)
• method and plausibility check

The System Environement

• User Desktop
• The client is available for different operating systems, like MS-Windows (drag-and-drop, clipboard, DDE, OLE, context help).
• adaptable to the user's needs
• Database
• runs on a server or on the same single workstation
• e.g. Oracle^TM or MS-Access^TM

HIS^3D is an open system

• expandable by new methods
• extendable by new data sources and parameters
• open to other packages, e.g.: MS-Excel^TM, MS-Word^TM, ArcInfo^TM, ArcView^TM
• operating system (MS-Windows^TM NT/2000, Linux, Unix) and database independent

Expansionsmodules:

• HISprof - profile editing, ADCP
• HISoline - isolines, surfaces
• HISarc - presentation on maps (ArcView)
• HISchem - chemical evaluations
• eHIS InterStore - E-Commerce with environmental data
